J. Daniel Cramer´s Krellberg Variations in VCV Rack – Part 5

We are going to make a big jump in this article no. 5. Therefore it will come in handy to have a look at the whole patch as it is by now before we continue patching. There are going to be more modules, even different new kinds of modules as well as a new technique (patching strategy) in this part. So, let´s have a look at what we have by now:

generative music music of the krell krellberg variations J Daniel Cramer

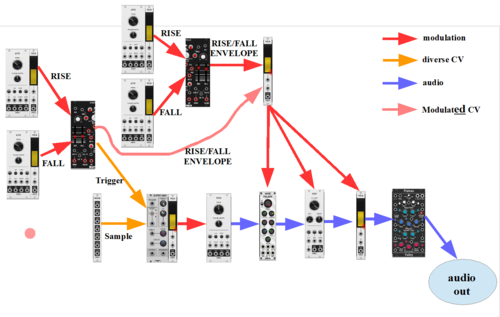

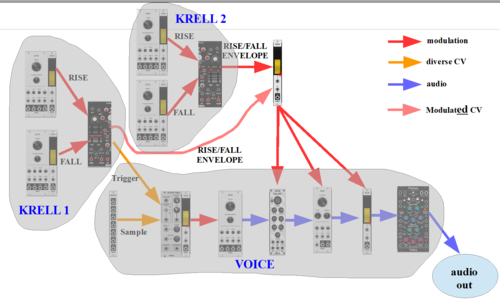

And because it´s really important to understand and to always have present in mind what´s going on in the patch, here the same with marked functional blocks:

generative music music of the krell krell patch

Please keep one eye at the pictures above while reading the following.

The first thing I do is removing the NOISE module, which has served as the source for the SAMPLE&HOLD unit to take CV samples from. I´m going to replace this NOISE module by a whole sub-patch. This sub-patch is going to contain an LFO (triangle), an ATTENUATOR/OFFSET-CV module and a QUANTIZER module. In Daniel´s hardware version there is even a buffered MULTIPLE module after the QUANTIZER module, but here in VCV Rack we don´t need multiples, because we can use each jack more than only once.

Then I insert a VCA between the oscillator (VCO) and the rest of the modules in the audio path. And even this “rest” of the audio path itself won´t stay unchanged: From the newly inserted VCA the audio goes into a resonant LOW-PASS FILTER before it is fed into the WAVE FOLDER from which it goes into the VCF/VCA combination (a LOW-PASS GATE in the original patch). The only thing that stays untouched is the final audio VCA in front of the REVERB module.

But that´s not all yet. I´m even going to ad a second pitch modulation (parallel/additionally to the pitch modulation by the SAMPLE &HOLD module. This second pitch modulation (mimicking kind of vibrato) comes from an additional sine wave LFO, which is sent through an attenuating VCA and a mixer (to mix the S&H modulation and the vibrato effect) into the V/Oct jack of the VCO.

But I´m not only adding things to the patch, but also removing a whole block from the patch: The block called “KRELL 2” vanishes. All modulations are going to come from “KRELL 1”: the cut-off modulation of the two filters, the modulation of the WAVE FOLDER, the final volume modulation. And the modulation of the resonance of the resonant filter as well as the modulation of the strength of the vibrato effect (the last 2 mentioned modulations are “negative”, because I´m sending the RISE/FALL envelope of KRELL 1 through an inverter before I patch it into the resonance jack of the resonant filter and the CV jack of the “vibrato-VCA”.

Those of you, who have paid attention will say.” But now the RISE/FALL envelope will always go up to 100%, to maximum again, now, that there is no KRELL 2 block any more nor an upper central VCA.” My answer: yes, you are right – so far.

A last thing: I´ll exchange the simple VCV Rack VCO for something more sophisticated. Just for fun.

I´ll explain the HOWs and WHYs of all these mentioned measures (and show the diagrams) while I demonstrate them step by step now.

Last thing first: exchanging the VCO (I´m going to use a couple of different VCOs in the course of this series – partly just for fun and partly for a purpose):

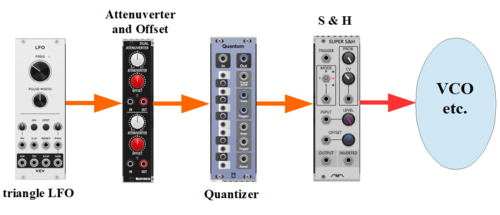

Now for the sample source. In short and simple words: I want the SAMPLE&HOLD module to take only those pitch CVs, which belong to a certain scale, a scale, that I can determine. To achieve that I feed the output of a QUANTIZER into the sample source input of the S&H module. I want the temporal distribution of the notes in the scale to be even/regular. Therefore I feed a triangle wave into the QUANTIZER. But I want to be able to set the range of the pitch CV, the range of the resulting notes rather precise. Therefore I patch an ATTENUATOR with a CV OFFSET between the triangle wave LFO and the QUANTIZER. The Offset function sets the lower limit, the minimum of the pitch CV, and the attenuator function sets the range of the pitch CVs (minimum to maximum difference). Instead of the NOISE module I get the following sub-patch now:

generative music music of the krell krell patch

Let me try different adjustments of the frequency of the triangle LFO, the offset and the range, and different scales to demonstrate the capabilities of my new sub-patch. In the video you can see and hear, how I reduce or increase the range of the pitches with the white attenuverter knob, and the lowest pitch of this range with the red offset knob. And you see and hear that increasing the rate of the LFO makes the pitch CV that the come from the S&H into the VCO change more often, whereas at rather low LFO rates one and the same pitch is repeated quite often. By pushing the buttons on the keyboard of the quantizer I set the scale of allowed notes. Well, just watch and listen:



A last short video clip before I continue developing the patch. This time I want to demonstrate the parameters OFFSET and ATTENUVERTER. I´ve inserted another oscilloscope (purple curve):

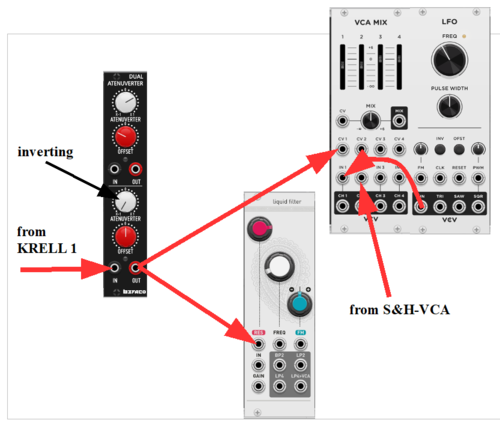

Alright. Now for the vibrato effect. To say it at once: I don´t want a large and long or otherwise impressive “major” kind of vibrato effect. No, what I want a rather discreet and unobstrusive kind of effect. Anyway. I need a mixer to mix the output of the Sample & Hold module and the (attenuated) output of the “vibrato”-LFO before the combined signal is sent to the pitch modulation input of the VCO. And – I told you above – I modulate the strength of the LFO, the share that the LFO has in the mix, by the inverted RISE/FALL envelope of the Krell function (former “KRELL 1”). Fortunately my BEFACO Atenuverter module is a double module. So I can use the lower half of the module to take over this function. Mixer that I´m using has CV modulations for each channel. Therefore I don´t need to add another VCA, but can patch the CV coming from the Atenuverter directly in the mixer channel´s CV input.

generative music music of the krell krellberg variations J Daniel Cramer

I can´t help doing another “just-for-fun-exchange”: I exchange the wave folder for a Befaco dual channel wave folder (You may want to listen to different timbres from time to time, don´t you?).

The following video demonstrates the patch as it is by now.

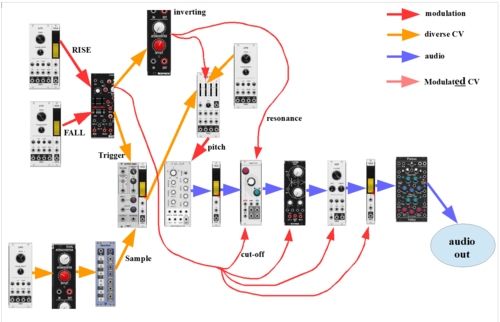

And here is the graphic showing the patch:

generative music music of the krell krellberg variations J Daniel Cramer

The next article in this series is mainly about fine tuning the patch as it is by now.

Enjoy your day!

Rolf

to be continued

to part 1: https://www.dev.rofilm-media.net/node/426

to part 2: https://www.dev.rofilm-media.net/node/428

to part 3: https://www.dev.rofilm-media.net/node/429

to part 4: https://www.dev.rofilm-media.net/node/430

to part 6: https://www.dev.rofilm-media.net/node/434

to part 7: https://www.dev.rofilm-media.net/node/441

to part 8: https://www.dev.rofilm-media.net/node/472



to Daniel´s Video 5: https://www.youtube.com/watch?v=gMk7-QN_MqU

to Daniel´s interview with Rolf (part 1): https://youtu.be/zPbsd8phRxo

to Daniel´s interview with Rolf (part 2): https://youtu.be/9diidyuk0tE
